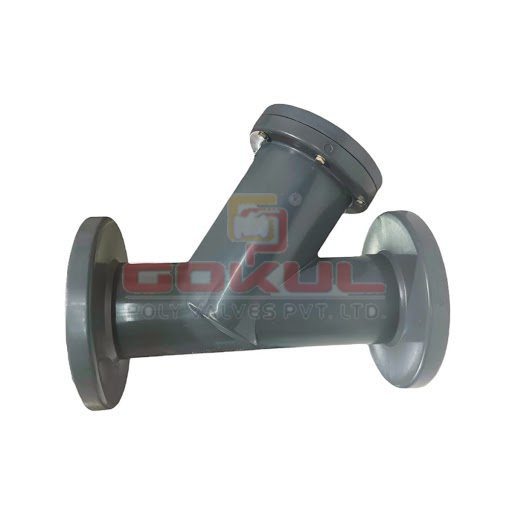

PP “Y” TYPE STRAINER FLANGE END

PP Y Type Strainer Flange End India

We are a well-known company engaged in developing highly viable pp y type strainer flanged end. Offering a sturdy and highly durable range of flanges that are designed as compressive ends and fabricated at our well-integrated setup, these flanges are made from industry approved grades of high-density polyethylene. We are leveraging the most advanced injection molding techniques to develop precisely fabricated flanges that are available in varying diameters at a leading price.

PP “Y” TYPE STRAINER FLANGE END
pp y type strainer flanged end Manufacturer in Gujarat
TECHNICAL SPECIFICATION
Material Of Construction PP (Polypropylene)
Design Single piece body
Maximum working temp 50 c (consistently)
Connection End Flanged as per ANSI B 16.5 (150#) & BS 10 (Table D/E/F) & DIN STD.
We will also provide on request – screen 20,40,60,80, 100 &120 Mesh
Test pressure 5kg
Size Range ½”-15mm TO 6’’-150MM
Standard As per manufactuer’s
Standard Mesh Size 80 Mesh pp Screen/SS
MATERIAL SPECIFICATION
No. DESCRIPTION MATERIAL QTY.
1) Body Polypropylene 1
2) Screen / Strainer 80 Mesh pp Screen 1
3) Cover Polypropylene 1
4) Cover Gasket EPDM 1
5) Side Piece Polypropylene 2
6) Flanges Polypropylene 2
7) Nuts & wisher S.S. REQ
SIZE SPECIFICATION ALL DIMENSIONS ARE IN ± 2 MM
Size L T D D1 H L1
In. mm
1/2″ 15 mm 184 13 93 15 81 10
3/4″ 20 mm 192 13 105 20 82 11
1″ 25 mm 242 14 124 24 110 12
1 ¼” 32mm 252 18 130 32 111 14
1 ½” 40 mm 272 18 141 39 117 14
2” 50mm 332 21 167 50 134 14
2 ½” 65 mm 366 22 188 65 184 14
3″ 80 mm 367 22 206 80 184 15
4″ 100 mm 415 26 225 102 263
6″ 150 mm 503 28 305 150
