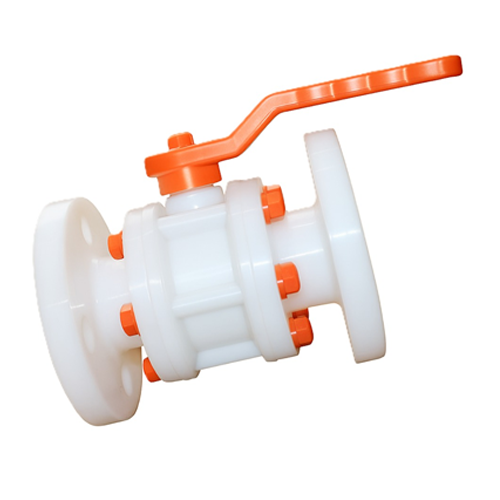

3 PIECE BALL VALVE FLANGE END

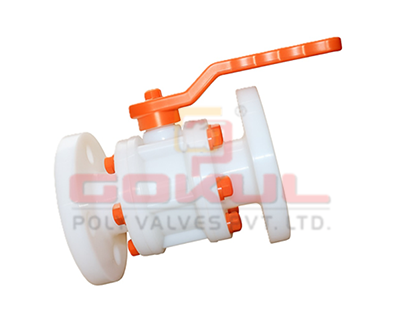

PPH Flange End Ball Valve, PPH 3 Piece Ball Valve Flange End
| TECHNICAL SPECIFICATION | |
| Material Of Construction | PPH (Polypropylene Homopolymer) / HDPE(Highdensitypolyethylene)/ PVDF(Polyvinylidene fluoride) |
| Design | 3 Piece Design |
| Maximum working temp | 80 c (consistently) |
| Connection End | Flanged as per ANSI B 16.5 (150#) & BS 10 (Table D/E/F) & DIN STD. |
| Construction | 3 piece design, 1 piece stem (spindle), full bore, Teflon seated |
| Hydraulic Test Pressure | Body-150 PSI & SEAT-100PSI |
| Size Range | ½” 15MM TO 12’’-315MM |
| Standard | As per manufactuer’s |

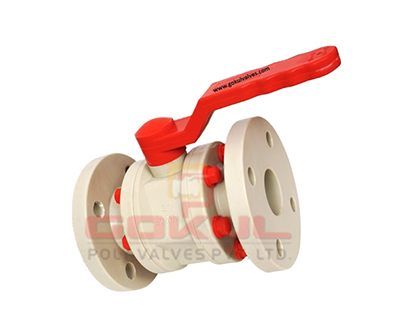

HDPE Flange End Ball Valve, HDPE 3 Piece Ball Valve Flange End
| MATERIAL SPECIFICATION | |||
| No. | DESCRIPTION | QTY. | MATERIAL |
| 1) | Side Piece /Flanged end | 2 | PPH / HDPE & PVDF |
| 2) | Body | 1 | PPH / HDPE & PVDF |
| 3) | Ball | 1 | PPH & PVDF |
| 4) | Stem/Spindal | 1 | PPH With M.S. /S.S |
| 5) | Seat Ring | 2 | PTFE (TEFLON) |
| 6) | Body”O”Ring | 2 | Noeprene |
| 7) | Stem Seal Ring | 1 | PTFE (TEFLON) |
| 8) | Stem “O” Ring | 1 | Neoprene |
| 9) | Stud, Nut & Washer | REQ | M.S. Zinc Plated/S.S |
| 10) | Nut Cap | REQ | Polypropylene. |
| 11) | Handle | 1 | M.S. PP Coated. |
| 12) | Handle Hex. Pin | 1 | M.S./ S.S. |
| 13) | Handle Cap | 1 | Polypropylene. |
| SIZE SPECIFICATION | ALL DIMENSIONS ARE IN ± 2 MM | ||||||
| Size | L | T | OD | ID | H1 | H | |
| In. | mm | ||||||
| 1/2″ | 15 mm | 140 | 12.5 | 100 | 13.5 | 130 | 69 |
| 3/4″ | 20 mm | 142 | 14 | 101 | 19 | 131 | 75 |
| 1″ | 25 mm | 160 | 20 | 123 | 24 | 165 | 89 |
| 1 1/2″ | 40 mm | 182 | 20 | 140 | 38 | 197 | 109 |
| 2″ | 50 mm | 208 | 22 | 165 | 50 | 200 | 121 |
| 2 1/2″ | 65 mm | 227 | 25 | 185 | 63 | 255 | 144 |
| 3″ | 80 mm | 248 | 25 | 201 | 75 | 255 | 150 |
| 4″ | 100 mm | 302 | 28 | 228 | 100 | 350 | 182 |
| 6″ | 150 mm | 428 | 30 | 300 | 150 | – | 236 |
| 8″ | 200 mm | 505 | 32 | 360 | 201 | – | 325 |
| 10″ | 250 mm | 570 | 34 | 425 | 242 | – | 310 |
| 12″ | 315 mm | 590 | 35 | 487 | 300 | – | 309 |
